Dimensions
- Cabinet: 700 x 250 x 700
- Stand: 500 x 255 x 900
- Ready for integration with advanced smart building energy system
Built-In Safety
- Overcurrent
- Overvoltage and undervoltage
- Ground fault
- Surge protection
Connectors
- Type 1 and type 2 cable
- Type 2 socket with or without shutter
- No need of extra hook, attached cable can be wrapped around the charger
Description

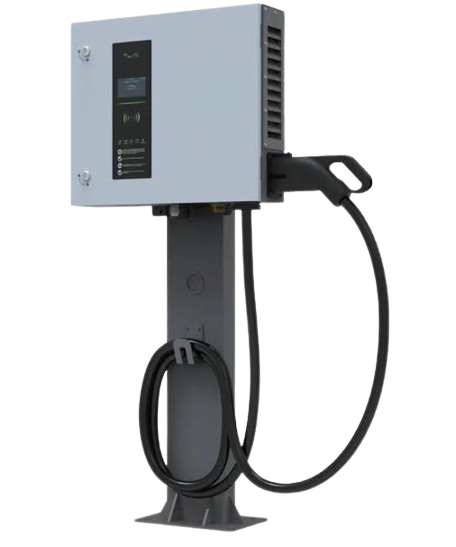

- Designed to cater to the demands of retail outlets, residential buildings, and commercial spaces, our 30 kW DC Charger sets a new standard in fast and seamless EV charging. Tailored for four-wheeler EVs, this advanced charging station features cutting-edge technology to deliver an unparalleled charging experience.
- Earth Level 3 charging station guarantees safety, intelligence, and connectivity for your EV charging needs.
Features
- Display: 9.7” Touchscreen HMI & Status LED
- Output Voltage Range: 200V – 1000V
- Input Frequency: 50 Hz
- Charging Interface/Connector type: CCS type 2
- Charge Option / User Authentication: RFID (online and offline both)
- Connectivity: Ethernet Interface – 3G & 4G
- Communication Protocol: OCPP 1.6J
- Ingress Protection: IP 54
- Cable Length: 5m
- Charging Control: Scan – Pay – Charge
- Operating Temperature: -25 °C to 45 °C
